Hapuflam® Penetration seals System „EASY“

Hapuflam® cable penetration seal system “EASY” was specifically developed for sealing cable trays and cable bundles in wall penetrations.

Overfilling issues in cable penetration sealing are thereby eliminated.

There is no more overcrowding when penetration seals are applied.
  • up to 100% cable occupation
  • cable lines of metal can also be conducted through the penetration seals
  • no cable coating
  • easy fitting
  • no building site equipment necessary
  • extremely clean application
  • penetration seals are possible in two standard colors

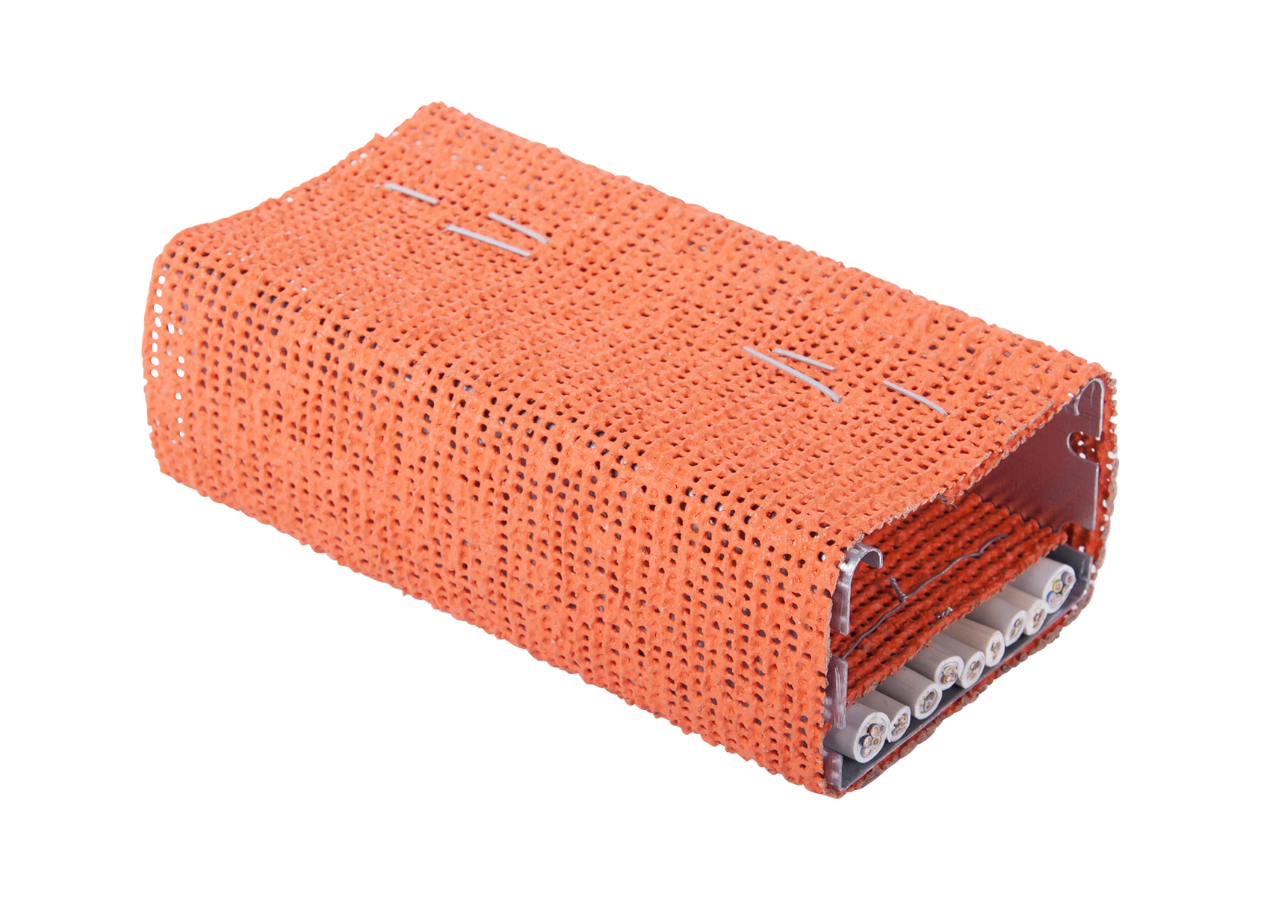

Hapuflam Kabelabschottung System Easy

Technical data

Approval:

European technical approval ETA-12/0566
(valid until 03.02.2018)
Fire resistance classification according to EN 13501-2:
2007 + A1:2009

Cabel:

Cabel trays: B x H 200 mm x 100 mm bis 500 mm x 60 mm
Cable bundles: D = 100 mm

Conduct the lattice through the wall resp. flush closing.
Close the gabs up to 5 cm with mineral wool (melting point >1000°C).

Classification:

EI 90 / E 90

Wall:

Wall quality: Concrete, aerated concrete or masonry with a minimum density of 650 kg/m³.
Wall penetration seal: thickness ≥ 100 mm
