Vermiculite for structural engineering

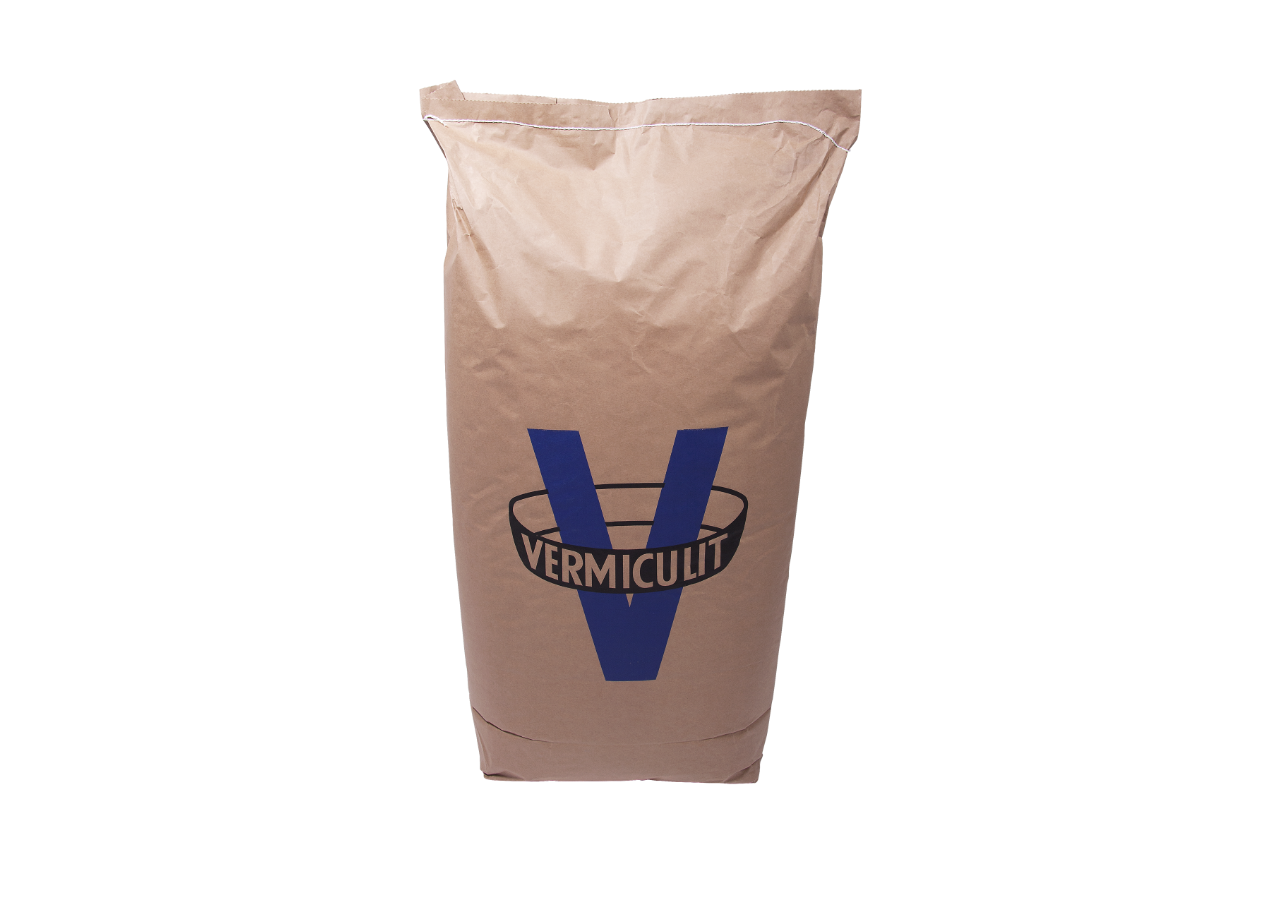

Vermiculite for structural engineering is a chimney insulation mass. It is supplied dry from the factory, as a premixed insulation mass made of the light anorganic aggregate Vermiculite and a hydraulic binding agent.
The introduced and fastened insulation mass is a mould-resistant, non-flammable insulation layer.
For reducing the diameter on house chimneys, Vermiculite for structural engineering may be introduced with a higher preparation water content.
Area of application
Vermiculite for structural engineering may be used for the production of an insulating layer with a thickness of at least 2.5 cm with and triple casing house chimney with a clear diameter of 900 cm². However, the authorised inner casing is maximum 15 m. Vermiculite for structural engineering may be used for individual chimneys and for groups of chimneys. Chimney groups may not be more than 2 clear chimney cross-sections and have a ventilation shaft for the ventilation of a special installation area for fireplaces.The introduced and fastened insulation mass is a mould-resistant, non-flammable insulation layer.
For reducing the diameter on house chimneys, Vermiculite for structural engineering may be introduced with a higher preparation water content.
Processing guidelines
Vermiculite for structural engineering is to be mixed with 1.2 litres +- 0.1 litres of water per kg of insulation mass for at least 3 minutes in a free fall mixer. Further substances may not be added. The mix batches must contain the full contents of one or several sacks. The mixture is to be poured in between the inner and outer side of the moulded pieces of the inner casing in sections of a maximum of 50 cm. By picking, Vermiculite for structural engineering is to be compressed by around 15 volume % and otherwise to be compressed so that a cavity-free insulation layer is created. The insulation layer must encompass the whole inner casing including the bearing joint under the lowest moulded piece in the scheduled property.
Guide usage values for an insulation thickness of 30mm
| Pipe-diameter | Consumption in litres per climbing metre |
|---|---|
| 140 / 140 | 33 |
| 120 / 180 | 35 |
| 165 / 165 | 37 |
| 150 / 200 | 39 |
| 180 / 180 | 40 |
| 200 / 200 | 42 |
| 200 / 250 | 46 |
| 250 / 250 | 50 |
| 250 / 300 | 55 |
| 300 / 300 | 58 |
Technical data (in installed condition)
Building class A1 non-flammable DIN 4102
Thermal conductivity - calculated value:
| Average temperature | Thermal conductivity |
|---|---|
| 50°C | 0,09 W/mK |
| 100°C | 0,09 W/mK |
| 150°C | 0,10 W/mK |
| 200°C | 0,11 W/mK |
| 250°C | 0,12 W/mK |
| Bulk weight approx | ca. 240 +/-20 kg /m³ |
|---|---|
| Pressure strength | 0,15 N/m² |
| Chloride ion | 0,012 Massen % |
These statements are based on the current state of our knowledge. They do not constitute a guarantee of the properties of the described product within the meaning of statutory warranty regulations.
